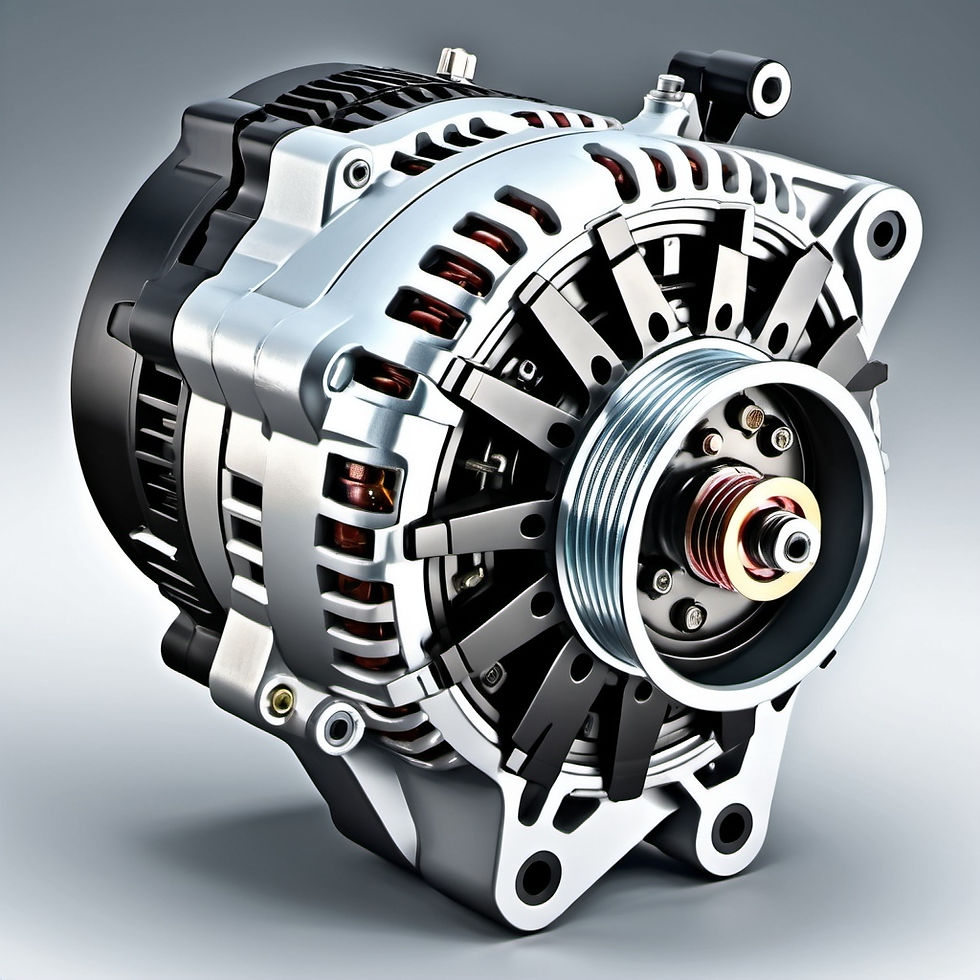

Your vehicle's alternator is a crucial component of its electrical system, responsible for keeping the battery charged and powering the electrical systems while the engine is running. If you’re experiencing issues like dim lights, battery warning lights, or frequent dead batteries, it could be a sign that your alternator is not functioning properly. Fortunately, testing your alternator is a straightforward process that you can do yourself. Here’s a step-by-step guide to help you test an alternator in a 12-volt automotive vehicle.
Why Test Your Alternator?
Testing your alternator can help diagnose issues such as:
Weak or Dead Battery: A failing alternator may not charge the battery properly.
Dim or Flickering Lights: Inconsistent power from a bad alternator can cause electrical issues.
Battery Warning Light: An illuminated battery light on your dashboard often indicates alternator problems.
Tools You’ll Need
Multimeter: To measure voltage and check electrical output.
Wrench or Socket Set: To remove and reattach battery terminals.
Safety Gloves and Glasses: For protection while working with electrical components.
Step-by-Step Guide to Testing Your Alternator
Prepare the Vehicle
Ensure Safety: Park the vehicle on a level surface and set the parking brake. Wear safety gloves and glasses.
Turn Off the Engine: Before you start testing, make sure the engine is off. This is essential for safely disconnecting and reconnecting the battery.
Check Battery Voltage
Test with a Multimeter: Set your multimeter to measure DC voltage (usually marked as “V” with a straight line). Place the positive (red) lead on the positive terminal of the battery and the negative (black) lead on the negative terminal.
Read the Voltage: A healthy, fully charged battery should read around 12.6 volts. If it’s significantly lower, the battery might be the issue, or the alternator may not be charging it properly.
Start the Engine
Run the Engine: Start the engine and let it idle. This will allow the alternator to start charging the battery.
Measure Voltage Again: With the engine running, measure the battery voltage with your multimeter. You should see a voltage reading between 13.7 and 14.7 volts. This indicates that the alternator is charging the battery properly.
Test Under Load
Turn on Electrical Accessories: Turn on the headlights, air conditioning, and radio to put a load on the electrical system.
Check Voltage: With the load on, the voltage should remain steady and still fall within the 13.7 to 14.7 volts range. A significant drop in voltage could indicate an issue with the alternator’s ability to handle the load.
Perform a Voltage Drop Test
Check Battery Voltage Drop: Turn off the engine and check the voltage at the battery. Then, start the engine and measure the voltage drop between the battery positive terminal and the alternator positive terminal.
Analyze Results: A voltage drop of more than 0.5 volts could suggest poor connections or wiring issues.
Inspect the Alternator
Listen for Noises: While the engine is running, listen for any unusual noises from the alternator, such as grinding or squealing. These sounds could indicate mechanical problems with the alternator.
Check for Warning Lights: Observe the dashboard for any warning lights. A lit battery or charging system light may indicate that the alternator or associated components are failing.
Examine the Alternator Belt
Check Tension and Condition: Ensure that the alternator belt is tight and in good condition. A loose or worn belt can cause the alternator to underperform.
Perform a Load Test
Professional Testing: For a more thorough diagnosis, you might need to take your vehicle to an auto parts store or repair shop where they can perform a load test on the alternator. This test measures the alternator's performance under heavy load conditions.
When to Seek Professional Help
If your tests indicate that the alternator is not performing within the expected range, or if you’re unsure of the results, it may be time to consult a professional mechanic. Alternators are complex components, and a mechanic can provide a more detailed diagnosis and perform any necessary repairs or replacements.
Conclusion
Testing your alternator is a vital step in diagnosing electrical issues in your vehicle. By following these steps, you can determine if your alternator is functioning properly or if it requires attention. Regular maintenance and timely repairs can help ensure that your vehicle’s electrical system remains in optimal condition, keeping you safe and on the road.
If you’re not comfortable performing these tests yourself, don’t hesitate to reach out to a professional. They have the tools and expertise to accurately diagnose and fix any alternator-related issues.
